Wired Sensor Switch for Low- and High-Voltage Lighting Systems

Wired sensor switches are hardwired electronic control units designed to switch, trigger, or dim low-voltage (12–24 V DC) and high-voltage (85–265 V AC) lighting circuits through capacitive touch, passive infrared (PIR) detection, or mechanical proximity sensing.

12mm Dimmable Touch Sensor Switch
This 12mm touch sensor switch is designed for low-voltage LED interior lighting control. It operates across standard DC 12V and 24V constant-voltage circuits, making it suitable for driving...
view more
Hidden PIR Motion Sensor Switch
The Hidden PIR Motion Sensor Switch is a low-voltage DC PIR controller designed for discreet installation in cabinetry, furniture, and indoor LED lighting systems. When motion is detected, it...
view more
Hidden Dimmable Touch Sensor Switch
The Hidden Dimmable Touch Sensor Switch is a concealed dimmable touch sensor switch designed for installation behind wooden panels, cabinetry, and interior furniture. A short press toggles the...
view more
Hidden Double-head Touch Sensor Switch
The LP-9030-2 is a hidden dual-head touch sensor switch for integrated LED lighting in cabinetry, furniture, and architectural millwork. Two independent sensor heads enable dual-zone lighting...
view more
220V High Voltage PIR Motion Sensor Switch
This mains-voltage PIR motion sensor switch is designed for automatic AC lighting control. With an AC input range of 85V–265V, it switches connected lighting loads on when motion is detected and...
view more

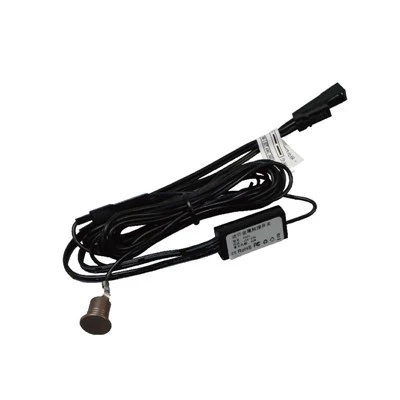

Metal Sensing Head Touch Sensor Switch
This metal-sensing touch sensor switch is designed for cabinet lighting, furniture integration, and custom architectural LED profiles. A short press provides gradual light transitions, while a...
view more

Wired Sensor Switch Types

01/

Low-Voltage Dimmable Touch Switches: 12–24 V DC modules with stepless PWM dimming and press ON/OFF control, rated up to 5 A (60 W maximum at 12 V DC).

02/

Hidden Surface Touch Switches: Capacitive sensors for concealed mounting behind non-metallic panels such as wood, composite board, or acrylic, without exterior cutouts.

03/

Hidden Double-Head Touch Switches: Dual capacitive probes connected to one control PCB, enabling operation from two entry points on a single cabinet channel.

04/

Concealed PIR Motion Sensor Switches: Compact PIR switches for frame-integrated installation, automatically controlling lighting when motion is detected.

05/

High-Voltage AC PIR Sensor Switches: Mains-powered PIR switches operating at 85–265 V AC for direct connection to high-voltage fixtures or power lines.

06/

Metal-Sensing Head Touch Switches: Surface-mounted touch sensors for metallic structures or humid, enclosed cabinets.

Detection Range

Hidden Touch Panel Thickness:

Penetrates non-metallic panels (wood, composite, or acrylic) up to 3mm thick, depending on material density and dielectric constant.

PIR Detection Distance:

Senses thermal motion within a range of 2 to 3 meters under standard indoor temperature conditions.

PIR Field Angle:

Coverage pattern spans 90° to 120°, aligning with interior cabinet frames, wardrobes, and doorway passage paths.

PIR Auto Turn-Off Delay:

Automatically cuts power after a fixed inactivity period when no motion is detected within the zone.

Wiring & Connection Options

Stripped and Tinned Wire Leads:

Pre-stripped wire ends with tinned conductors, suitable for direct PCB soldering or screw terminal clamping during panel fabrication.

Parallel Dual-Head Cables:

Integrated Y-splitter cables connecting two sensing probes to one central control module.

Technical Specifications Comparison

Model / Type	Voltage	Load	Detection	Range	Mounting
12mm Dimmable Touch Switch	12V–24V DC	5A / 60W	Capacitive	Contact	12mm Recessed
Hidden PIR Motion Switch	12V–24V DC	Model Specific	PIR	2–3 m / 90°–120°	Concealed
Hidden Dimmable Touch Switch	12V–24V DC	Model Specific	Capacitive	≤3 mm Panel	Rear Mount
Hidden Double-Head Touch Switch	12V–24V DC	Model Specific	Dual Capacitive	≤3 mm Panel	Dual Probes
220V High Voltage PIR Switch	85V–265V AC	Model Specific	PIR	2–3 m / 90°–120°	Surface / Recessed
Metal Sensing Head Touch Switch	12V–24V DC	Model Specific	Capacitive	Contact	Threaded Mount

Hidden Dimmable Touch Sensor Switch manufacturers

Wired Sensor Switch Dimensions & Installation

Sensor Probe Dimensions: Standard 12mm diameter recessed heads; low-profile surface-mount and compact concealed PIR sensor capsules.

Panel Cutout & Mounting Depth: Requires a 12mm precise routing cutout for recessed models; minimum 15mm cavity depth behind front panel.

Concealed Panel Limits: Rear-mounted touch sensors penetrate non-metallic panels (wood, composite, acrylic) up to 3mm maximum thickness.

Dual-Probe Setup Constraints: Twin capacitive heads connect via Y-splitter cable requiring parallel routing clearance inside cabinet frame channels.

Control Module Placement: Main PCB housing mounts separately within joinery hollows with minimum 10mm ambient clearance for thermal dissipation.

Cable Routing Space: Standard 1.5m lead wire paths require recessed cable channels to avoid wire pinch during cabinet assembly.

Wired Sensor Switch Selection Guide

Trigger Requirement:

Select PIR motion sensors for hands-free cabinet lighting; select capacitive touch modules for manual ON/OFF and dimming control.

Control Points:

Use dual-head touch models when light activation is required from two separate physical points on the same cabinet frame.

Environmental Suitability:

Specify moisture-sealed metal head units for humid environments such as bathroom vanities and mirror enclosures.

Custom Wired Sensor Switch & OEM Options

Cable & Wire Specifications: Customizable lead lengths (up to 2.0m), wire gauges (AWG), and outer insulation materials.

Pre-Installed Terminals: Pre-terminated DuPont, JST, or push-in quick-connect plugs tailored to customer assembly lines.

Probe & Sensor Configurations: Asymmetric Y-splitter cable lengths (e.g., 30cm / 80cm) for multi-door cabinet configurations.

Sensitivity & Firmware Tuning: Custom IC sensitivity calibration for distinct dielectric materials or conductive metal housing integration.

Protection & Electrical Upgrades: Optional integrated internal safety fuses for High-Voltage AC PIR models.

Custom Branding & Packaging: Laser-etched technical parameters, custom part numbering, private labeling, and OEM bulk export packaging.

Hidden Double-head Touch Sensor Switch manufacturers

FAQ

Q: What isolation clearance is provided between the AC input and low-voltage sensor circuitry?

A: The switch maintains at least 6 mm of creepage and clearance between the 85–265 V AC input and internal PIR circuitry.

Q: Can static buildup on acrylic panels cause false triggering?

A: In dry climates, static may cause minor sensitivity drift.

Q: What additional quality testing applies to the High-Voltage AC PIR Switch?

A: Each unit undergoes a 1500 V AC, 60-second hipot test, in addition to standard functional and PIR calibration tests.

Q: What maintenance do capacitive touch models require?

A: No routine maintenance is required. However, periodically clean the panel surface to remove dust, grime, or wax that may affect sensing consistency.

Q: For a bathroom vanity with both a mirror light and an exhaust fan on the same circuit, can one PIR switch control both loads?

A: It depends on the combined load — if both the light and fan together stay within the switch's rated capacity (e.g., under 5A at 12-24V DC), they can share one PIR switch; loads exceeding that limit require a separate relay or a higher-capacity switch model.

Q: What is the standard sample lead time, and does the high-voltage AC PIR model take longer?

A: Standard samples for low-voltage DC models are ready in 5–7 working days. High-voltage AC PIR samples typically require 7–10 working days due to the additional hipot test performed before
